E Series - mechanical air intake shutdown valves

Model range:

Click on the product images for further information

E valves

Basic automatic overspeed shut down model.

E-M valves

As per basic E valves but also include a cable operated manual shut down feature.

E90S & E90SM valves

The E90S valve is the largest valve in the E Series range of automatic overspeed shutdown valves.

EF/EFM valves

Combined E valve and engine air cleaner.

ET valves

Combined manual and automatic valves with integrated flametrap housing.

EH valves

Combined manual and automatic engine overspeed shut down valves.



Key features:

Operate independently of any external power or signal input to give automatic closure on engine overspeed. For enhanced safety can be supplied also fitted with a mechanical cable for a remote manually actuated shut down. Smaller models in this valve range are optionally available combined with an engine air cleaner to facilitate installation.

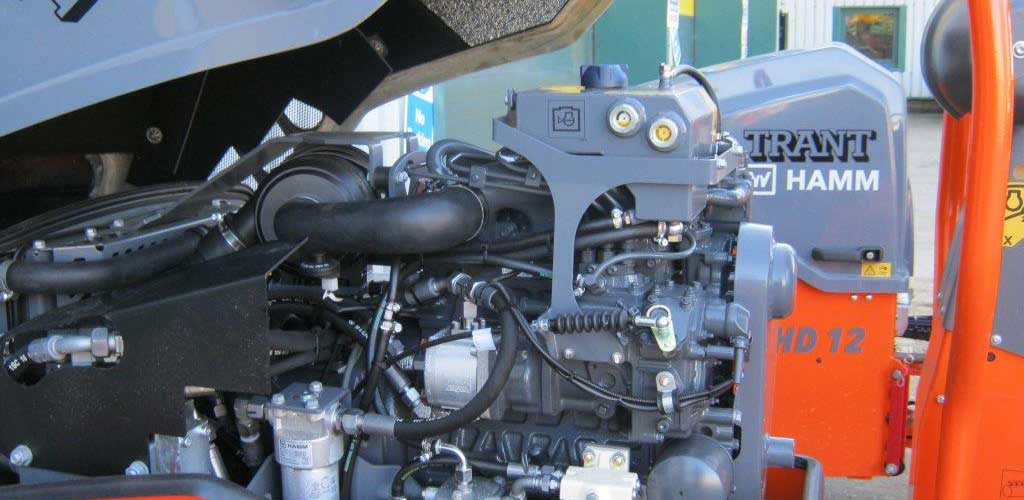

Image shows pre-installation state.

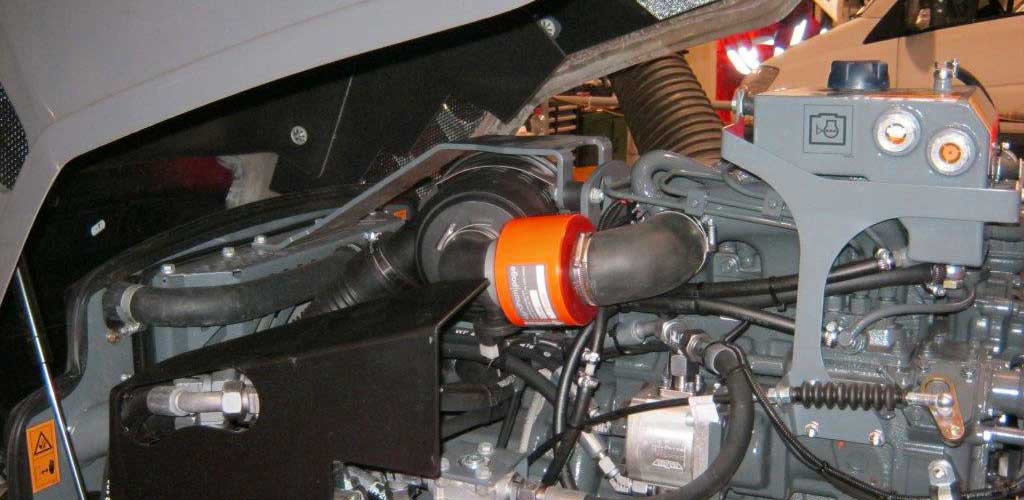

Typical installation into the engine air intake system

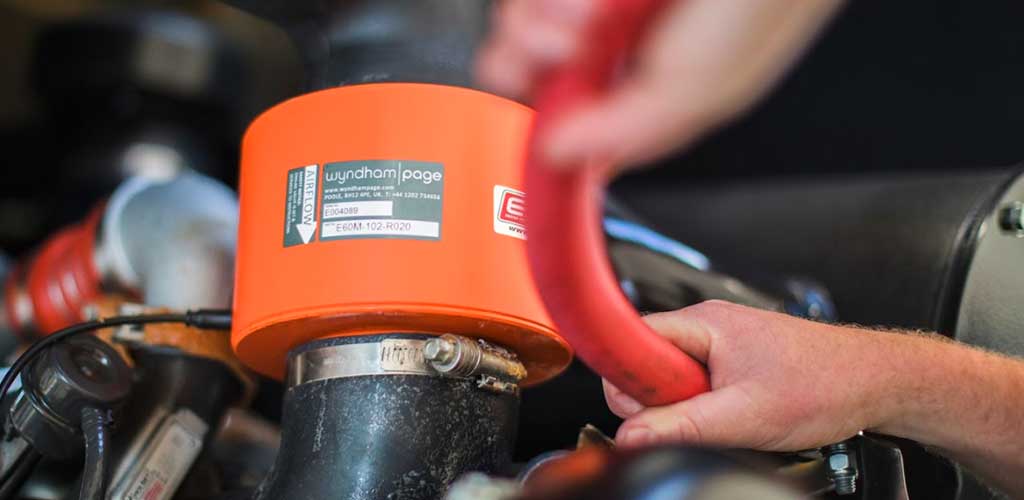

Installation of E-M series valve into engine air intake system

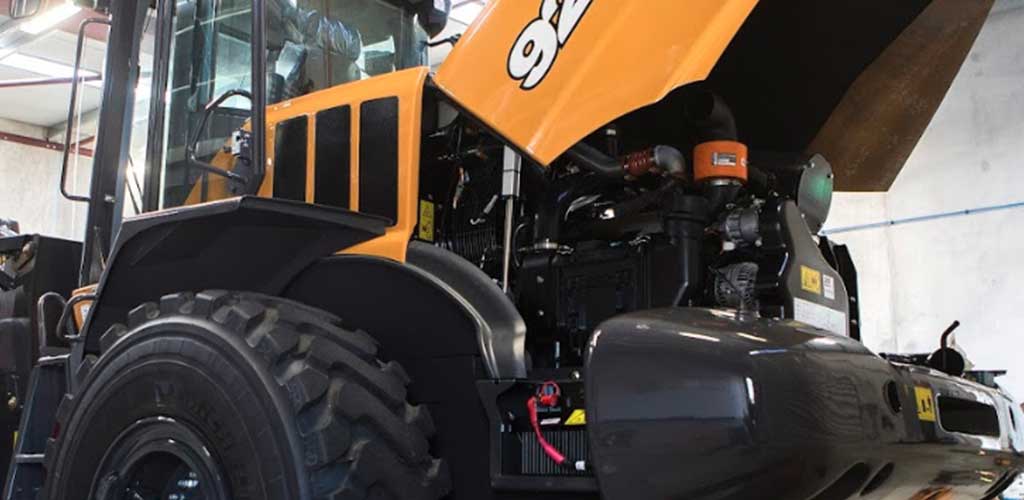

E-M series valve installation - Case 921F Wheel Loader

E valves

Basic automatic overspeed shut down model. Available in sizes to suit engine ratings from 3kW[4hp] to 290kW[389hp]. Higher power ratings for some applications possible subject to prior approval by Wyndham Page.



For more detailed product specification and installation/maintenance information, please download the technical handbook:

E series, D29, D30, D35BF, D41, D45/51, D57/64, D70, D80, D92, D102, D121, D136, D200

E-M valves

As per basic E valves but also include a cable operated manual shut down feature.



For more detailed product specification and installation/maintenance information, please download the technical handbook:

E-M series, D30-AM, D35BF-AM, D41-AM, D45/51-AM, D57/64-AM, D70-AM, D80-AM, D92-AM, D102-AM, D121-AM, D136-AM, D200-AM

E90S & E90SM valves

The E90S valve is the largest valve in the E Series range of Wyndham Page automatic overspeed shutdown valves. These are designed to be fitted to the air intakes of Diesel engines operating in areas where flammable gas, vapour or dust may enter the atmosphere and are certified for use in Zone 2, gas group IIB and Zone 22, dust group IIIB hazardous areas.



For more detailed product specification and installation/maintenance information, please download the technical handbook:

e90s-valve

EF/EFM valves

Combined E valve and engine air cleaner. EFM valves include a cable operated manual shut down feature.



For more detailed product specification and installation/maintenance information, please download the technical handbook:

E03F/ E03FM valves:

D41-F, D45/51-F, D57/64-F

E1186X, E1187X & E1257X Breather kits:

breather-kit

Available for Yanmar L48N, L70N and L100N engines. Kit comprises parts for sealing the existing crankcase breather and venting via the E03F or E03FM air intake valve.



For detailed installation information, please download the technical handbook:

E05F to E20FM valves:

e05f-e20f-valves

ET valves

Combined manual and automatic engine overspeed shut down valves with integrated flametrap housing.



For more detailed product specification and installation/maintenance information, please download the technical handbook:

ET-valves

EH valves

Combined manual and automatic engine overspeed shut down valves.



For more detailed product specification and installation/maintenance information, please download the technical handbook:

eh-valve

Further information/enquiry

Please contact Wyndham Page or your Wyndham Page supplier for full details of the E valve range including manual shut down options and combined valve/air cleaner assemblies. Alternatively you can complete the enquiry form shown here.
