F Series - solenoid actuated air intake shutdown valves

Model range:

Click on the product images for further information

FS1 valves

Powered to close types with manual reset.

FS2 valves

Powered to close types with automatic reset.

FS3 valves

Power to open [failsafe] types.

FS3-EX valves

Powered to open / spring to Close (failsafe)
ATEX / UKEX / IECEx certified.

Key features:

Butterfly type valves giving low air flow restriction for compatibility with emission controlled engines. Actuation is from either 12 volt or 24 volt electrical input. Both power to open [fail safe] and power to close versions available. The shut down power signal is supplied by the customer from an engine generated overspeed signal or any other fault condition as required.

Typical installation of F series valve into engine air intake system.

Typical installation of F series valve into engine air intake system.

Typical installation of F series valve into engine air intake system.

FS1 valves

Powered to close types with manual reset to the open [run] position. A cable operated manual reset option is available as is a valve mounted manual shut down button.



For more detailed product specification and installation/maintenance information, please download the technical handbook:

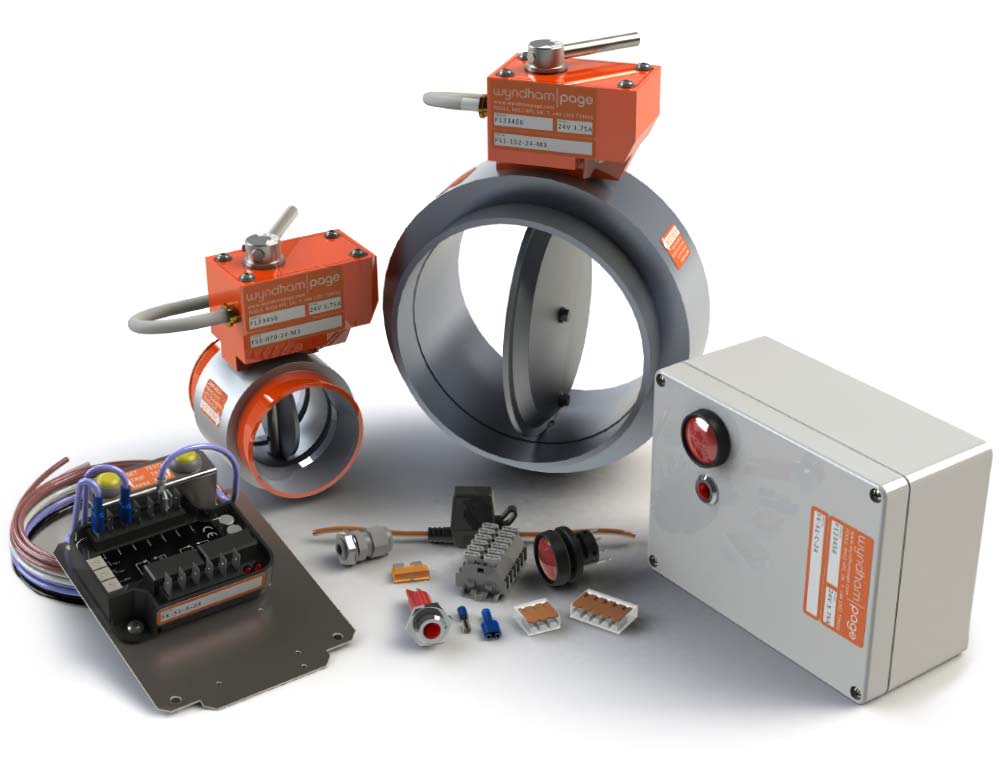

Speedswitch Kit for FS1 Valves

speedswitch-fs1-large

Complete Installation Kits for the FS1 Valve. Kit codes, wiring schematics and installation guidelines for installing the FS1 shutdown valve with a speedswitch.



For more detailed product specification and installation/maintenance information, please download the technical handbook:

FS1 valves for hose bore sizes of 38mm – 178mm (1.5 – 7.01 inches):

FS1, SVX-580, SVX-581, SVX-590, SVX-591, , SVX-584, SVX-585, SVX-594, SVX-595

FS1-178 and FS1-203 valves for hose bore sizes of 178mm (7 inches) and 203mm (8 inches):

fs1-203-valves

FS2 valves

Powered to close types with automatic reset to the open [run] position after engine shut down.



For more detailed product specification and installation/maintenance information, please download the technical handbook:

FS2, SVX-880, SVX-881, SVX-890, SVX-891, , SVX-884, SVX-885, SVX-894, SVX-895

FS3 valves

Power to open [failsafe] types. Sprung loaded return to the closed [stop] position when not powered.



For more detailed product specification and installation/maintenance information, please download the technical handbook:

FS3, SVX-500, SVX-501, SVX-502, SVX-503, SVX-505, SVX-506, SVX-507, SVX-508

FS3-EX valves

Solenoid Powered to Open / Spring to Close (failsafe).
ATEX / UKEX / IECEx certified.

For more detailed product specification and installation/maintenance information, please download the technical handbook:

FS3-ATEX-valve

ATEX / UKEX / IECEx Certified Hazardous Area Solenoids:

ATEX-solenoids

Further information/enquiry

Please contact Wyndham Page or your Wyndham Page supplier for full details of the F series valve range. Alternatively you can complete the enquiry form shown here.
