F Series - pneumatic actuated air intake shutdown valves

Model range:

Click on the product images for further information

FP2 valves

Air pressure to close with automatic reset.

FP3 valves

Air pressure to open / Spring to close (failsafe).

Speedswitch kit for FP valves

Kit for installing the FP2 & FP3 shutdown valves with a speedswitch.



Key features:

Butterfly type valves giving low air flow restriction for compatibility with emission controlled engines. Suitable for applications where there is a supply of filtered dry or lubricated air (or inert gas) available from 3 to 8 Bar (43 to 116 psi). Both air pressure to open [fail safe] and air pressure to close versions available.

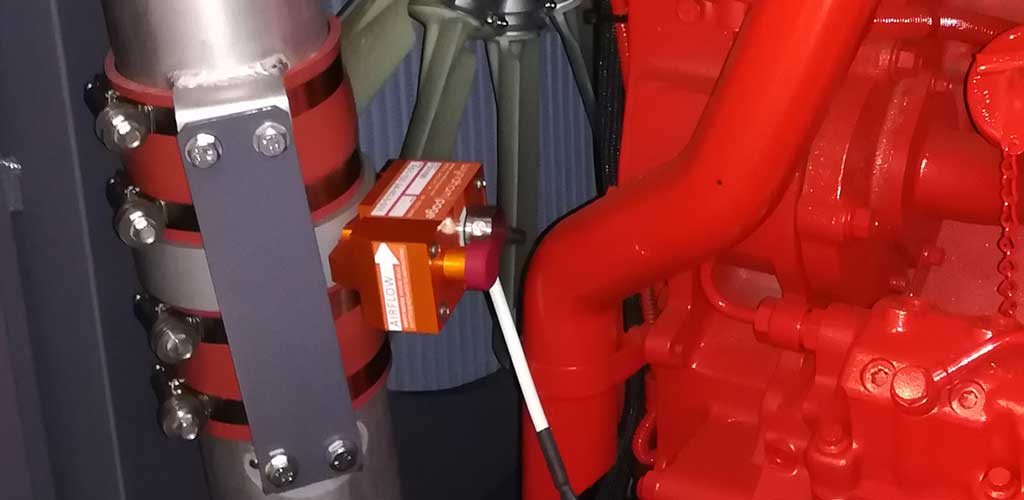

Typical installation of F series valve into engine air intake system.

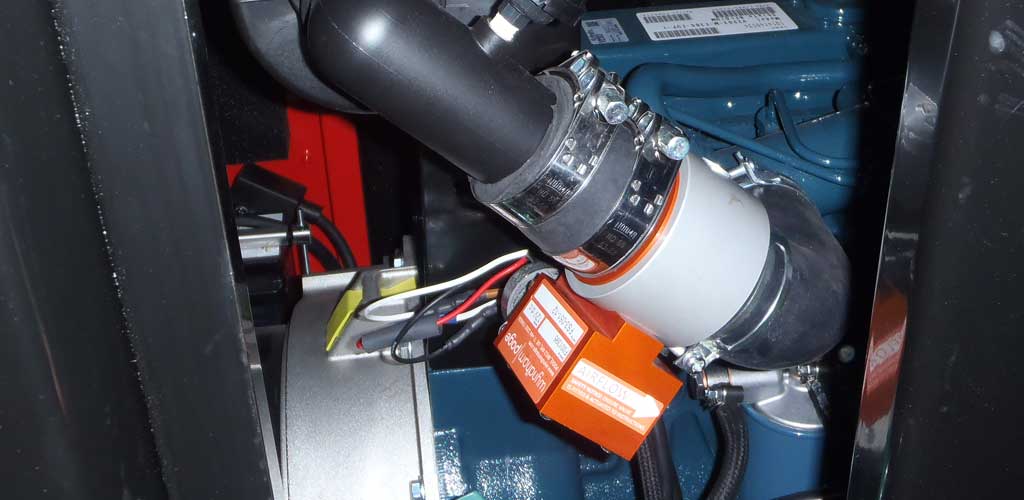

Typical installation of F series valve into engine air intake system.

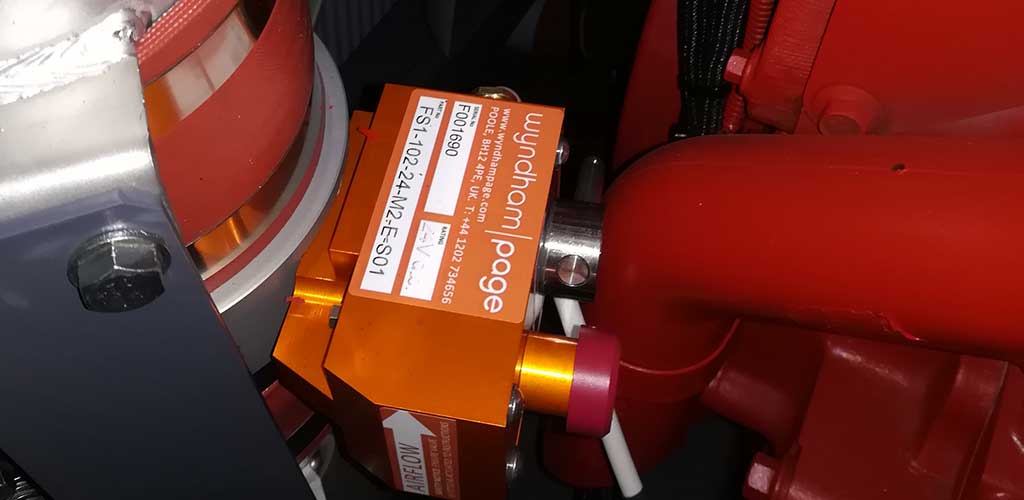

Typical installation of F series valve into engine air intake system.

FP2 valves

Air pressure to close / Automatic reset.



For more detailed product specification and installation/maintenance information, please download the technical handbook:

fp2-valves

FP3 valves

Air pressure to open / Spring to close (failsafe).



For more detailed product specification and installation/maintenance information, please download the technical handbook:

fp3-valves

Speedswitch Kit for FP Valves

Complete Installation Kits for the FP2 & 3 Valves. Kit codes, wiring schematics and installation guidelines for installing the FP shutdown valve with a speedswitch.



For more detailed product specification and installation/maintenance information, please download the technical handbook:

speedswitch-fp-valves-large

Further information/enquiry

Please contact Wyndham Page or your Wyndham Page supplier for full details of the F series valve range. Alternatively you can complete the enquiry form shown here.
